Database

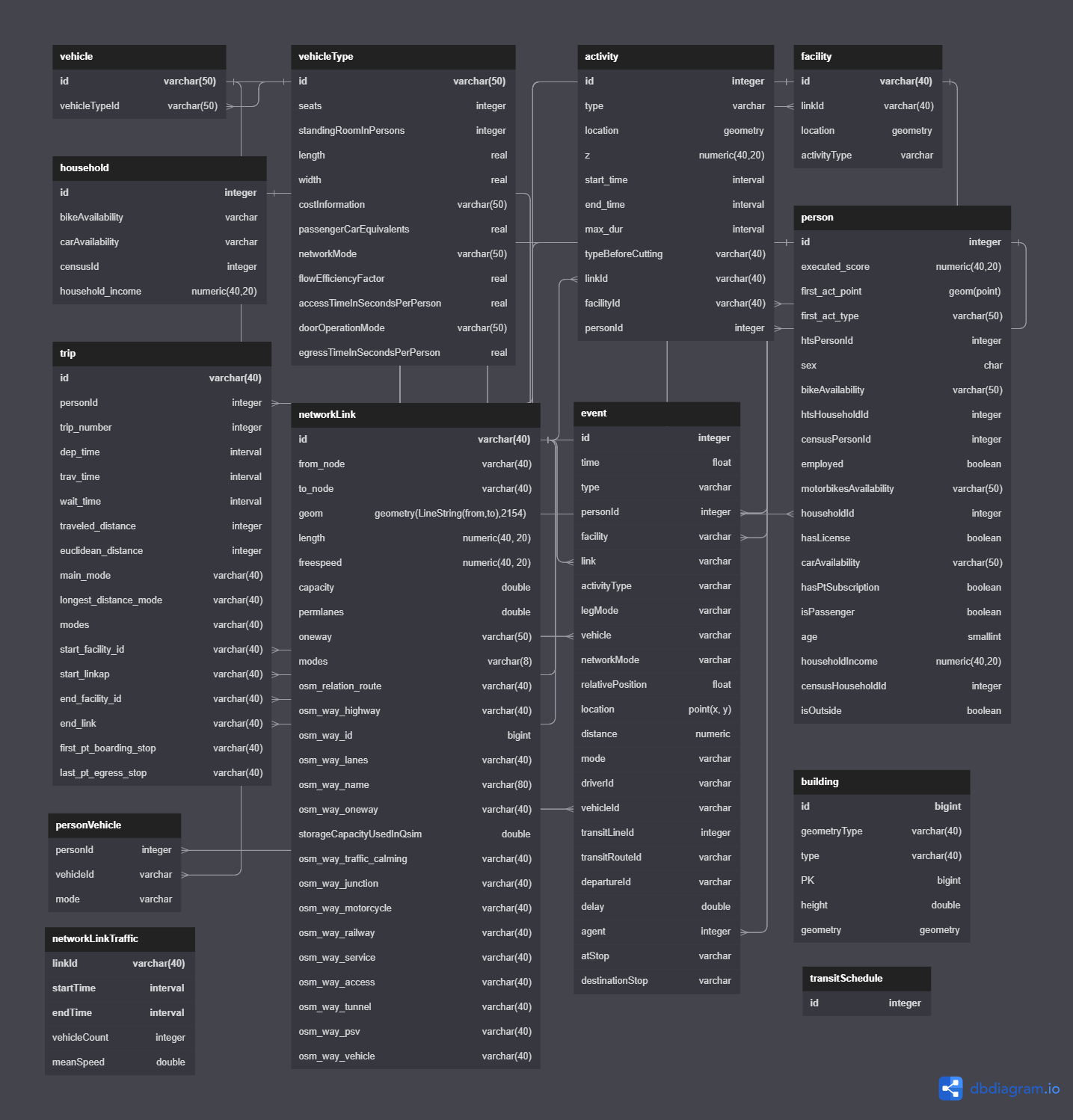

Database structure
You can see the following diagram more in details at https://dbdiagram.io/d/62bc660c69be0b672c6841b3
Or you can check the database documentation here : https://dbdocs.io/gabRpt/matsim_output_postgreSQL_converter
Matsim files and tables
Here are the files used to generate each table :
| Table name | Files used |
|---|---|
| activity | output_plans.xml.gz / output_experienced_plans.xml.gz / output_facilities.xml.gz |
| building | BUILDINGS.geojson |
| facility | output_facilities.xml.gz |
| household | output_households.xml.gz |
| networdlink | output_network.xml.gz |
| networdlinkTraffic | output_events.xml.gz |
| person | output_persons.csv.gz |
| trip | output_trips.csv.gz |
| vehicle | output_allvehicles.xml.gz |
| vehicleType | output_allvehicles.xml.gz |
